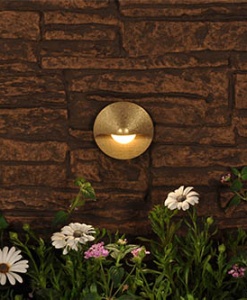

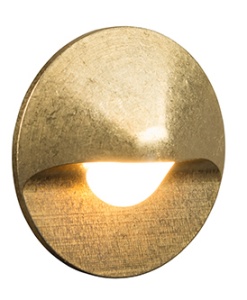

The FR brings the elegance and performance of precious metals to FX Luminaire. As a close extension of the existing NR fixture, the FR’s smaller size ensures up to a 3LED output, with all the color filters, beam angles, and other features associated with FX Luminaire integrated LEDs.
Warranty: 2 years
| Output | 1LED | 3LED | 3LEDT | ZDC | |
|---|---|---|---|---|---|
|
65 | 167 | 105 | 113 | |
|
10 to 15V | 10 to 15V | 10 to 15V | 11 to 15V | |
| Input Power (W) | 2.0 | 4.2 | 4.2 | 6.0 | |
| VA | 2.4 | 4.5 | 4.5 | 7.2 | |
| Efficacy (lm/W) | 32 | 40 | 30 | 35 | |
| CRI | 73 | 71 | — | 83 | |
| Minimum Rated Life | 50,000 Hrs | 50,000 Hrs | 50,000 Hrs | 50,000 Hrs |
Brouchure The FR: FR Brochure
Parts List The FR: FR Parts List
Hướng dẫn cài đặt Đèn chiếu lên FR: FR installation
